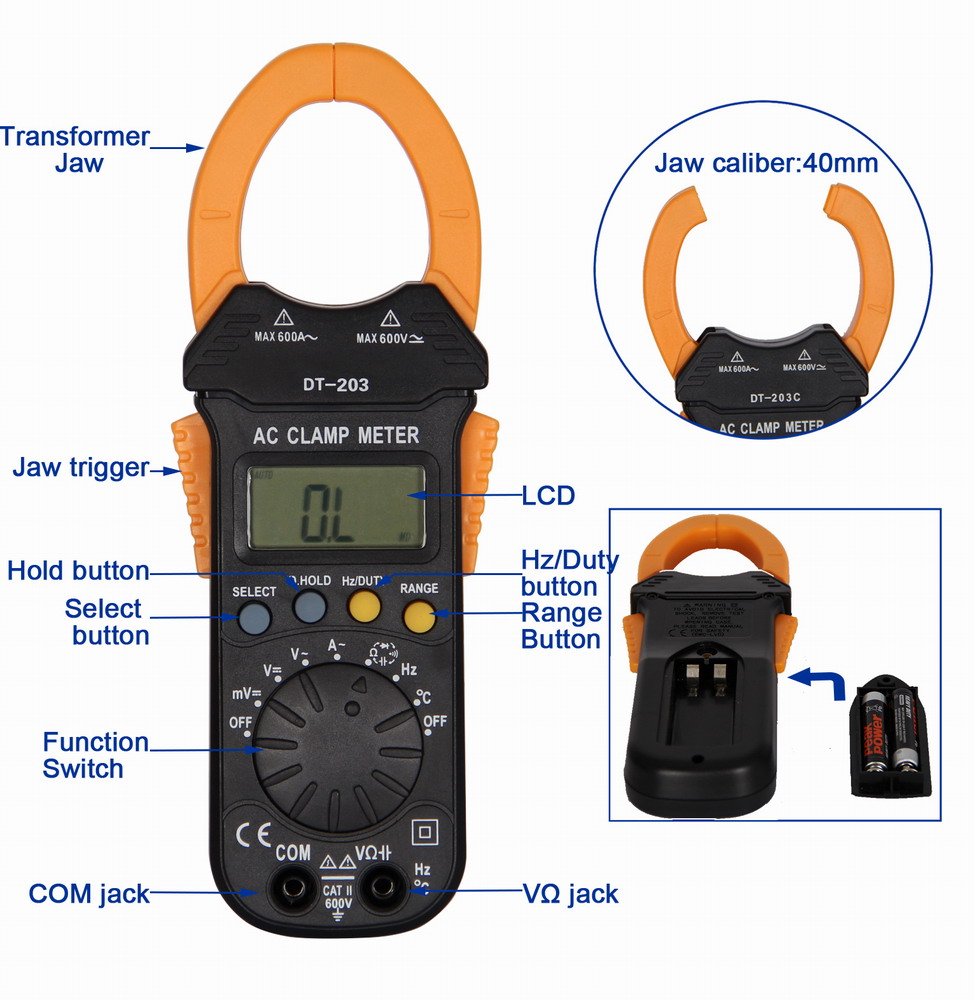

DT203
Portable clamp meter with auto range function. Easy to use. Clear to read in dark working condition with Blue backlight Data hold function for easy reading after measurement Non-contact measurement ensures the measurement safety.
Detail Technology features General description Packing details
DCV: 400m-4-40-400-600V ±0.8%
ACV: 400m-4-40-400-600V ±1.0%
ACA: 400-600A ±2.0%
Resistance: 400-4K-40K-400K-4M-40MΩ ±1.0%
Capacitance: 400n-40u-100uF ±4.0%
Frequency: 5-50-500-5K-50K-500K-5MHZ ±3.0%
Temperature: -20ºC~1000ºC ±2.0%
Duty Cycle: 0.1%-99.9% ±0.1%
ACV: 400m-4-40-400-600V ±1.0%
ACA: 400-600A ±2.0%
Resistance: 400-4K-40K-400K-4M-40MΩ ±1.0%
Capacitance: 400n-40u-100uF ±4.0%
Frequency: 5-50-500-5K-50K-500K-5MHZ ±3.0%
Temperature: -20ºC~1000ºC ±2.0%
Duty Cycle: 0.1%-99.9% ±0.1%
LCD size: 36x19mm
Max display: 3999
Auto range: yes
Low battery indication: yes
Overload protection:yes
Diode Test :yes
Continuity buzzer test: yes
Data Hold: yes
Backlight: yes
Jaw Caliber:∮40mm
Power supply: two 1.5V AAA battery
Product size: 190x68x28mm
Product weight: about 139g (without battery)
Standard Accessories: meter (without battery), carrying bag, test lead, thermocouple, manual, battery
Max display: 3999
Auto range: yes
Low battery indication: yes
Overload protection:yes
Diode Test :yes
Continuity buzzer test: yes
Data Hold: yes
Backlight: yes
Jaw Caliber:∮40mm
Power supply: two 1.5V AAA battery
Product size: 190x68x28mm
Product weight: about 139g (without battery)
Standard Accessories: meter (without battery), carrying bag, test lead, thermocouple, manual, battery
Packing: color box
Packing quantity: 50PCS/CTN
Carton size: 54x24.5x44CM
G.W/ N.W: 16/15KG
Packing quantity: 50PCS/CTN
Carton size: 54x24.5x44CM
G.W/ N.W: 16/15KG
